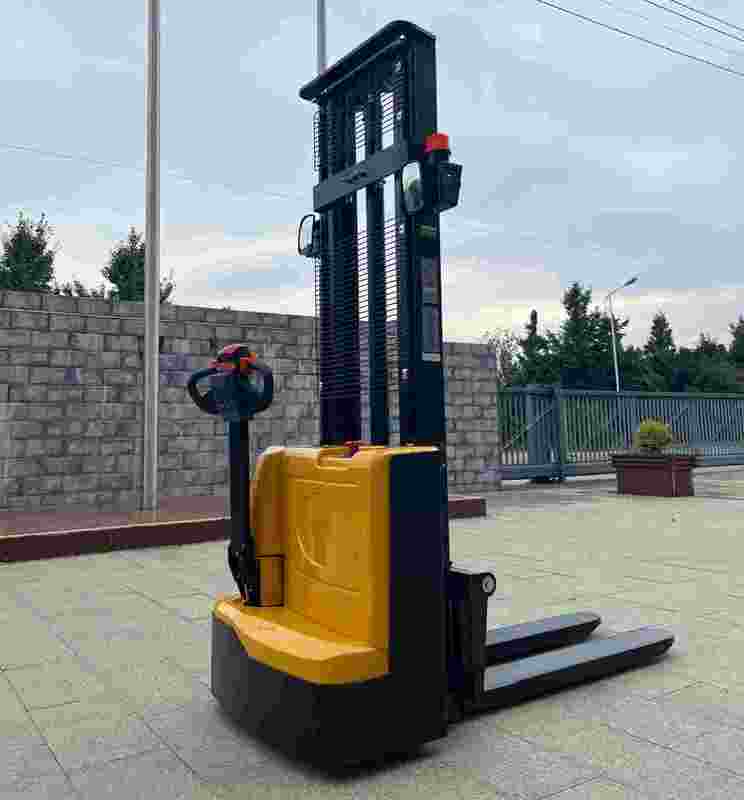

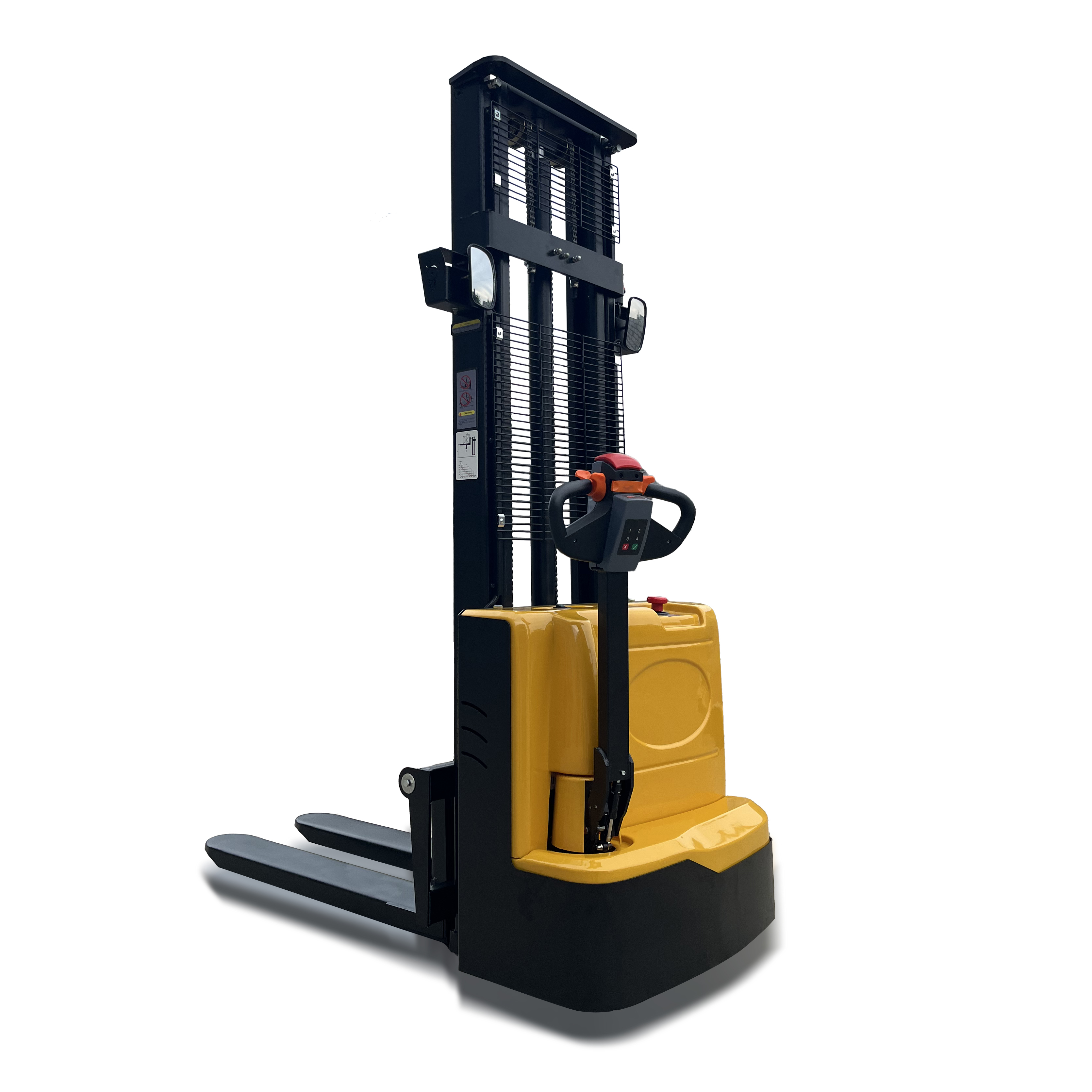

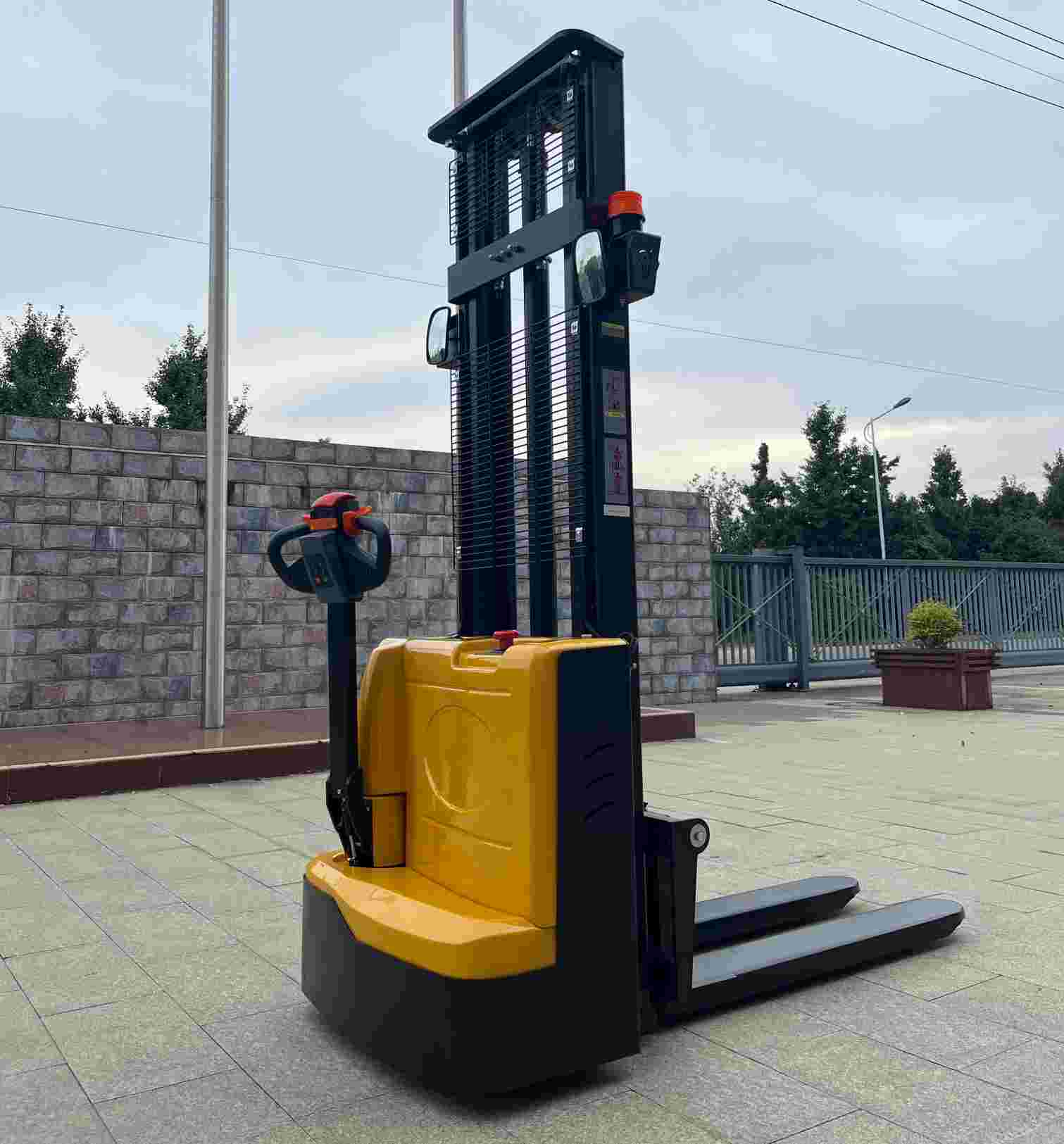

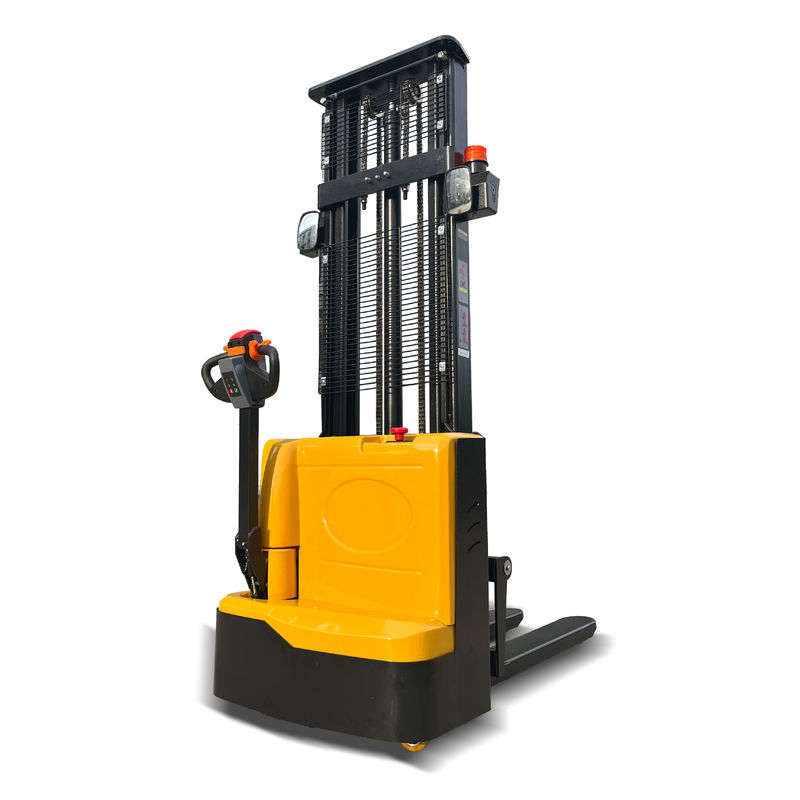

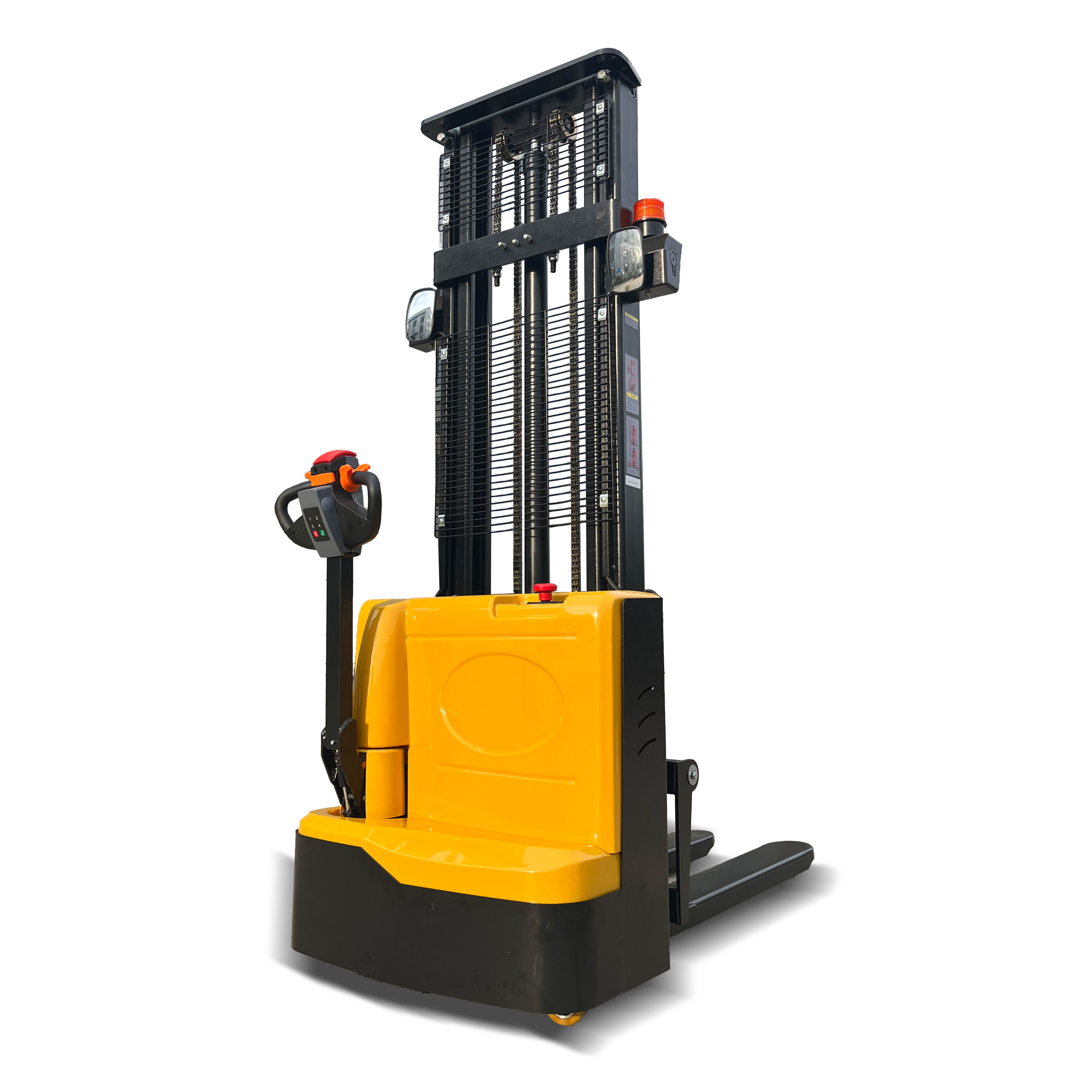

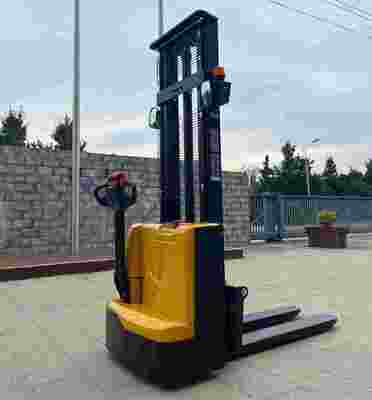

CDDW1630 Electric Pallet Stacker 1600kg Load 3000mm Lift Height

Attribute	Value
Condition	New
Fork Length	1070mm/customized
Fork Width	550/680mm/customized
Applicable Industries	hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Advertising
Terrain Adaptability	Indoor Flooring, Outdoor Pavement, other
Load Center	500 mm
Load weight	1500KG
Battery	24V/80Ah
Battery type	lead acid battery
Power Source	DC MOTOR
Warranty	1 Year
Core Components	Pressure vessel, Bearing, Gear, Pump, Gearbox, Engine
Min. Lifting Height	2080mm
Overall Dimensions	1770(L)*850(w)*2080(h)
Weight (KG)	500 kg

The CDDW1630 1600kg 3000mm low price electric pedestrian stacker hydraulic walkie forklift is ideal for small warehouses, production, or retail environments. This entry-level stacker optimizes daily working routines with its compact dimensions, making it perfect for limited spaces. It operates efficiently in narrow areas, is easy to use, and significantly reduces labor requirements.

• Uses Curtis controller, serviceable by any forklift service company worldwide
• Integrated charger provides flexibility for modern urban supply chains
• Maintenance-free batteries requiring no water addition
• High-strength forks for durable performance

MODEL	CDDW10 CDDW15
Features	Drive system	Battery
Features	Driving mode	Walkie
Load Capacity	Q	KG	1000
Load Center	C	MM	500
Weight	Weight(With battery)	KG
Wheels	Material	PU
Size	Lifting Height	H3	MM	1600/2000/2500/3000
Lowest Mast	H1	MM	2080/1580/1830/2080
Max.Height when operating	H4	MM	2080/2730/3230/3730
Min.Height of Fork	H13	MM	≤90
Length	L1	MM	1770
Width	B1	MM	850
Size	Fork Length	L	MM	1070
Wheelbase	Y	MM	1250
Fork Outside Width	B5	MM	680
Fork Inside Width	MM
Min.Turning Radius	WA	MM	1390
Performance	Driving Speed (Empty/Full Load)	MM/S	5.0/5.0
Lifting Speed (Empty/Full Load)	MM/S	140/135
Descending Speed (Empty/Full Load)	MM/S	150/155
Max.Gradient (Empty/Full Load)	°	7/5
Brake	Electromagnetic brake
Driving Motor	KW	DC/0.75
Lifting Motor	KW	DC/2.2
Battery	Capacity	V/Ah	24/80Ah

• Inquiry and consulting support
• Sample testing support
• Factory viewing available

• Machine installation and operation training
• Engineers available for overseas service (for distributors)

Control Handle: KAD brand domestic famous control handle with functional buttons for sensitive UP/DOWN, FORWARD/BACKWARD control. Uses Curtis brand accelerator for safe operation.

Essential for warehouses with insufficient lighting conditions.

Reverse rearview mirror and buzzing sound for enhanced safety. Unlike some competitors who omit these to reduce costs, we include these safety devices while maintaining competitive pricing.

High-strength 3-stage mast supports heavy loads at 4-4.5m heights.
